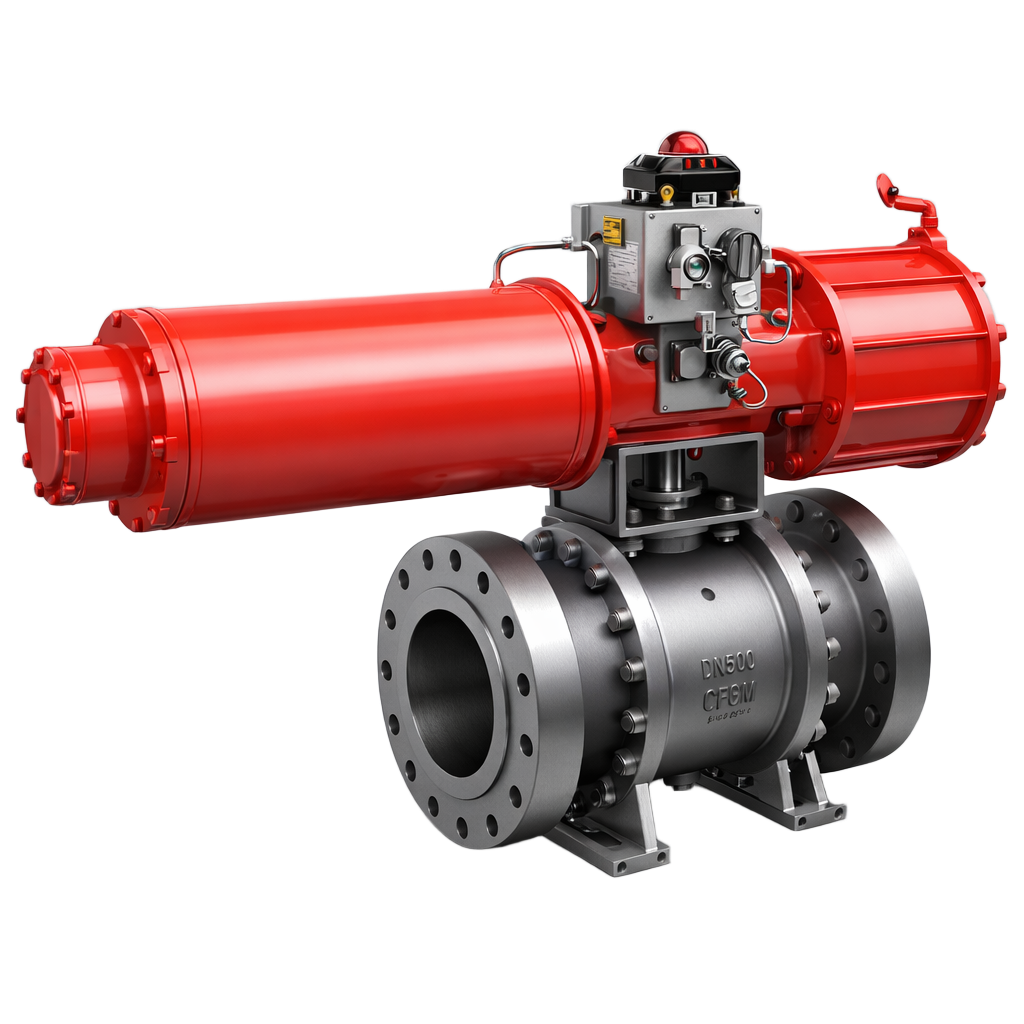

Pneumatic Ball Valve

Ball Valve

※ Valve caliber: DN15-DN1200 (1/2"-48")

※ Pressure: CLASS 150~CLASS900（PN10~PN160）

※ Housing materials: Carbon steel, stainless steel, duplex stainless steel, Hastelloy, etc.

※ Applicable media: Crude oil, refined oil, natural gas, and various chemicals.

※ Applicable temperature: -196℃~450℃

yixin@yixin-valve.cn

Inquire Now

Description

Pneumatic Ball Valve

Proven Automation Solution for Reliable Flow Control

A Pneumatic Ball Valve is a quarter-turn automated valve operated by a pneumatic actuator, widely used in industrial pipeline systems for fast, safe, and reliable flow control. Powered by compressed air, pneumatic ball valves are especially suitable for applications requiring high switching frequency, operational safety, and integration with automated control systems.

How Pneumatic Ball Valves Work

Pneumatic ball valves use a rack-and-pinion or scotch yoke actuator to convert air pressure into rotary motion. This design ensures consistent torque output and precise valve positioning, even under high-pressure or demanding operating conditions.
Their simple operating principle contributes to long service life, stable performance, and low failure rates, making them a preferred choice in critical industrial processes.

Key Performance Advantages

Fast Response & Operational Efficiency
Quarter-turn operation enables rapid open/close action, minimizing process downtime and improving system responsiveness.

High Safety in Hazardous Environments
As air-driven devices, pneumatic ball valves eliminate electrical ignition risks, making them ideal for explosive, flammable, or corrosive environments.

Excellent Sealing & Pressure Integrity
Advanced seat and stem sealing designs ensure reliable shut-off performance across a wide range of pressures and temperatures.

Low Maintenance & Lifecycle Cost
Robust mechanical construction and standardized actuator components reduce maintenance requirements and overall operating costs.

Design & Configuration Options

To meet diverse application requirements, pneumatic ball valves are available in multiple configurations:

Floating Ball and Trunnion Mounted designs
Two-piece, three-piece, and fully welded bodies
On-off and modulating control types
Soft seat and metal seat options
Materials including carbon steel, stainless steel, duplex, and alloy steel

Optional features such as fire-safe design, anti-static devices, and blow-out proof stems enhance reliability and compliance with international standards.

Automation & Control Integration

Pneumatic ball valves can be equipped with:

Solenoid valves
Limit switches and position indicators
Valve positioners
Air filter regulators

These accessories enable seamless integration with PLC, DCS, and SCADA systems, supporting modern industrial automation and remote monitoring requirements.

Typical Industrial Applications

Pneumatic ball valves are extensively applied in:

Oil & Gas (Upstream, Midstream, and Downstream)
Chemical and Petrochemical Processing
Power Generation and Energy Systems
Water Treatment and Desalination
General Industrial Automation

Their versatility and reliability make them suitable for both standard service and severe working conditions.

Engineering Expertise Behind Reliable Performance

At Yixin Valve, we combine hands-on manufacturing experience, engineering expertise, and strict quality management to deliver pneumatic ball valves that meet real-world operating demands.
Our products are designed and tested in accordance with API, ISO, ASME, and other relevant international standards, ensuring consistent performance, safety, and traceability throughout the product lifecycle.

With a focus on application-driven design and long-term reliability, Yixin Valve provides pneumatic ball valve solutions trusted by customers in oil & gas, chemical, and industrial automation sectors worldwide.

With over 15 years of professional expertise, YIXIN has been specializing in manufacturing industry-specific flow control solutions – particularly industrial valves – catering to sectors such as oil & gas, chemical engineering, power stations, water supply, and energy.
Equipped with state-of-the-art facilities and a comprehensive manufacturing system, YIXIN delivers high-quality industrial valves, including pneumatic actuated ball valves, DBB valves, and top entry ball valves.

We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
